NVMeConsole v.2.2.00
NVM Express™ (NVMe™) is a specification defining how host software communicates with non-volatile memory across a PCI Express® (PCIe®) bus.
NVMeConsole is the NVMe windows command-line tool that you can look into the data structure of NVMe device. And, you can check the nvme-cli tool for Linux.
This tool can be run it with Windows 10 x64 environment on Intel, AMD, VMWare machine.
This tool follows the NVM Express Specification 2.0, and free.
If you have any questions or requests, please use [Issues] on github.
Control Flow
if, else if, else, end if
Use if blocks to do different things depending on some condition. Include zero or more else if blocks and one optional else block.
if 2+2 == 4 then
print “math works!”
else if pi > 3 then
print “pi is tasty”
else if “a” < “b” then
print “I can sort”
else
print “last chance”
end if
while, end while
Use a while block to loop as long as a condition is true.
s = “Spam”
while s.len < 50
s = s + “, spam”
end while
print s + ” and spam!”
for, end for
A for loop can loop over any list, including ones easily created with the range function.
for i in range(10, 1)
print i + “…”
end for
print “Liftoff!”
break & continue
The break statement jumps out of a while or for loop. The continue statement jumps to the top of the loop, skipping the rest of the current iteration.
#DUMP
Dump top context
import
Use import function to import a functional library.
import(libName, libPath)
Example
import(“dev”, “.\lib\nvmedevice.ncs”)
Keyboard shortcuts
Keyboard shortcuts are keys or combinations of keys that provide an alternative way to do something that you’d typically do with a mouse.
You can configure key assignments by using the hotkeys [F1] – [F12] and editing the hotkey.ini file.
Update the inbox NMVe Device driver to LallaNVMePin driver
Refer to the NVMeCraft manual.
Sequence to initialize the device
1. Select a NVMe Device of LallaNVMe Drivers
SelectDevice(int num)

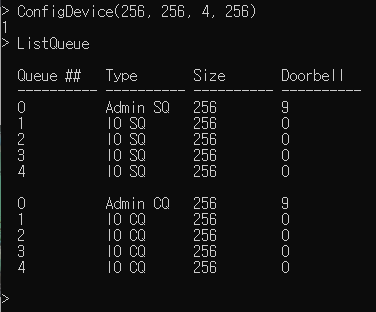

2. Config the admin/io Queues
ConfigDevice(asqsize, acqsize, iocount, ioqsize)
Easy script execution
Just copy the shown below script examples and paste on NVMeConsole
Identify Command
1. Allocate a data memory for the ID data.
idData = new DATAMEM
idData.DataMem_Assign(4096)
2. Create a SQE and populate the sqe field with the appropriate values.
sqe = new SQE
sqe.opc = 6
sqe.cdw10 = 1
sqe.datamem = idData
sqe.Sqe_SubmitTailSync(0, 0.5)
3. Dump data
sqe.datamem.DataMem_Dump()
or
idData.DataMem_Dump()
4. Check completion
sqe
or
sqe.completion
Read Command (lba = 0, NLB = 1(2 sectors))
1. Allocate a data memory for the data read.
data = new DATAMEM
data.DataMem_Assign(1024)
2. Create a SQE and populate the sqe field with the appropriate values.
readsqe = new SQE
readsqe.datamem = data
readsqe.opc = 2
readsqe.nsid = 1
readsqe.cdw12 = 1
readsqe.Sqe_SubmitTailSync(1, 0.5)
3. Dump data
data.DataMem_Dump()
4. Save data to a file.
data.DataMem_ToFile(“.\Data\data.bin”)
5. Check completion
readsqe.completion
