NVMeConsole – Getting Started

This page is an overview of the NVMeConsole.

NVMeConsle is a tool for testing the NVMe Protocol.

  • Run NVMeConsole
  • Try NVMeConsole

Run NVMeConsole

  1.  Download the NVMeConsole
  2.  Run the NVMeConsole with administrator privileges.
  3. Type in [ListDevice]
  4. If the driver name of target device is not LallaNVMeDevice, install the device driver with target NVMe Device.
  5. Install the device driver with target device.

Install the device driver

  1. Confirm the BDF of target device.
  2. Search the target device in [Storage controller] of [Device manager]
  3. Right click the target device and click the [update driver]
  4. Select [Browse my computer for drivers] item in the Update Drivers dialog.
  5. Select [Let me pick from a list of available drivers on my computer] and click the [Have disk] button. And, click [Browse] button.
  6. Search and open the [LallaNVMePin.inf] file in the [.\NVMeConsole\LallaNVMePin]
  7. Click [OK] button on [Install From Disk] dialog.
  8. Click [Next] button.
  9. Confirm the installed device driver and close the dialog.

  10. Power Cycle.(Must do. Otherwise, you will get a bluescreen.)

  11. Run the NVMeConsole and confirm the [Driver Name] with [ListDevice] command.

Try NVMeConsole

  • Select a target device
  • Config the target device
  • Issue an identify admin command and read the data
  • Issue Write IO Command
  • Issue Read IO Command

Select a target device

  1. Type in [ListDevice]
  2. Select the target device with [SelectDevice(0)] or [SelectDevice 0]
  3. Confirm the selected target device with[ListDevice]
  4. There is an asterisk in front of the device number.

Config the target device

*Use the [ConfigDevice] API to configurate the target device.
* You can check the internal operations of [ConfigDevice] with “Controller.Initialization” API in the[.\lib\nvmedevice.ncs]

  1. Use ConfigDevice(<ASQSIZE>, <ACQSIZE>, <IOQCOUNT>, <IOQSIZE>)
  2. Confirm the status of the admin/io queues setuped.
  3. List the Admin submission queue entry(The asterisk means  doorbell.)

Issue an identify admin command and read the data

1 Declare a variable for the data of identify command. And assign the size.

idData = new DATAMEM
idData.DataMem_Assign(4096)

2. Declare a variable for SQ Entry and fill the fields with appropriate values.

sqe = new SQE
sqe.opc = 6
sqe.cdw10 = 1
sqe.datamem = idData

3. Submit the command

sqe.Sqe_SubmitTailSync(0, 0.5)

4. Check the completion

sqe
or
sqe.completion

5. Dump the data

idData.DataMem_Dump()
or
sqe.datamem.DataMem_Dump()

Write IO Command

1. Declare a variable for the data of IO Write command, and assign the size.

wrData = new DATAMEM
wrData.DataMem_Assign(4096)

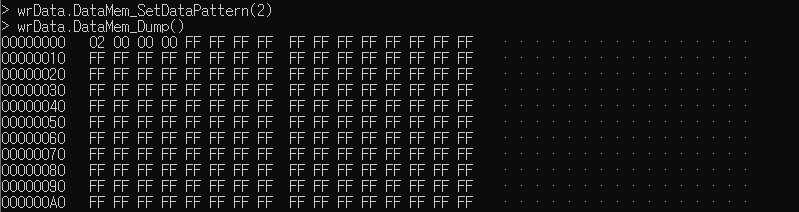

2. Fill the data buffer with specific data pattern

wrData.DataMem_SetDataPattern(2)

3. Declare a variable for a IO SQE to write data. And fill the fields with appropriate values.

wrSqe = new SQE
wrSqe.datamem = wrData
wrSqe.opc = 1
wrSqe.nsid = 1
wrSqe.cdw12 = 7

4. Submit the command

wrSqe.Sqe_SubmitTailSync(1, 0.5)

5. Check the completion

wrSqe
or
wrSqe.completion

Read IO Command

1. Declare a variable for the data of IO Read command, and assign the size.

rdData = new DATAMEM
rdData.DataMem_Assign(4096)

2. Declare a variable for a IO SQE to read data. And fill the fields with appropriate values.

rdSqe = new SQE
rdSqe.datamem = rdData
rdSqe.opc = 2
rdSqe.nsid = 1
rdSqe.cdw12 = 7

3. Submit the command

rdSqe.Sqe_SubmitTailSync(1, 0.5)

4. Check the completion

rdSqe
or
rdSqe.completion

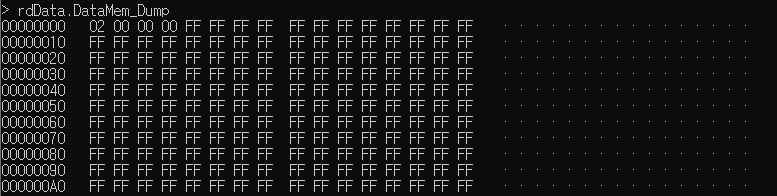

5. Dump the data

rdData.DataMem_Dump()
or
rdSqe.datamem.DataMem_Dump()
